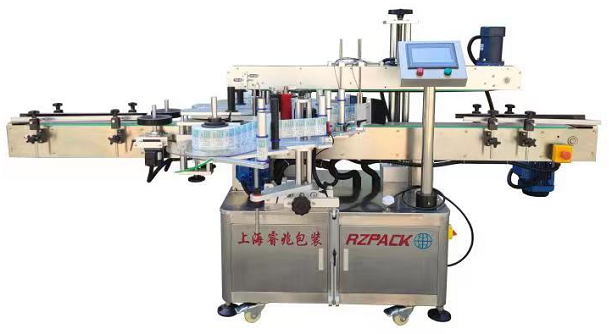

RZS351O高速型双面贴标机特点：

全机为SUS304不锈钢与高级铝合金制成。

贴标机头采用进口高速伺服马达.确保贴标速度与精度。

所有的光电及控制系统也都采用了德国，日本及台湾进口的高端产品。

PLC配合人机界面控制，摄作简洁明了。

RZS3510 type high speed double labeling machine features:

" The whole machine of SUS304 stainless steel and advanced aluminum alloy Is made.

" The labeling head Is made of imported high speed servo motor to ensure labeling speed and accuracy.

" All of the photoelectric and control system are adopted in Germany, Japan and Taiwan Imports of high-end products.

" PLC man-machine Interface control, simple operation.

技术参数/Technical Parameters:

机器尺寸/Machine size:2800L*1650W*1500H

贴标速度/Output speed:60-350pcs/min

贴标物高度/hight label object:30-350mm

贴标物厚度/Thickly labei object:20-120mm

贴标高度/Label hight:15-140mm

贴标长度/Label length:25-300mm

贴标精度/Pastes the sign precision:+1mm

纸卷内径直径/Rollinside:76mm

纸卷外径/Roll Outside Diameter:420mm

电源/Power Supply:单相220V50/60HZ3.5KW

印纸用气源/Printer with air:5Kg/cm2

机器重量/weight:450Kg
