产品功能特点：

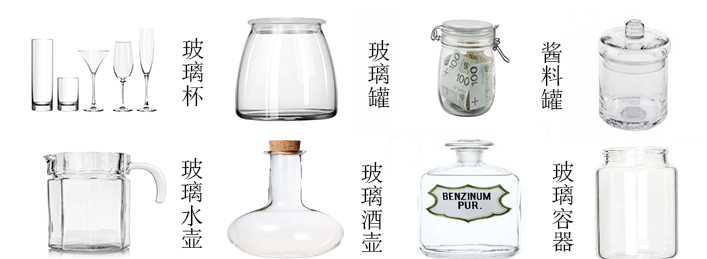

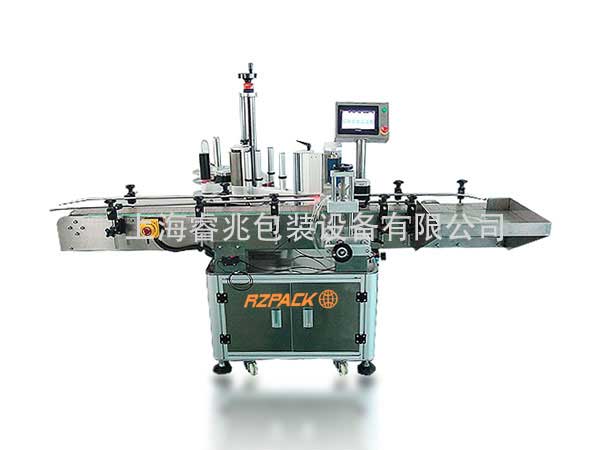

全自动玻璃贴标机广泛应用于食品、医药、化妆品、日化、电子、五金、塑胶等行业；

适用范围广，可满足圆瓶的全周贴标或半圆周贴标；

稳定性高，PLC+触摸屏+光纤电眼+测标签电眼组成的高级电控系统。

可选配功能：
①热打码/喷码功能；
②自动上料功能（结合产品考虑）；
③自动收料功能（结合产品考虑）；
④增加贴标装置；
⑤圆周周向定位贴标功能；
⑥其他功能（按客户要求订做）。

Product features:

Full-automatic glass labeling machine is widely used in food, medicine, cosmetics, daily chemical, electronics, hardware, plastic and other industries; it has a wide range of applications and can meet the full-period labeling or semi-circle labeling of round bottles; Advanced electronic control system composed of touch screen + fiber optic eye + measuring tag electric eye.

Optional functions:

① Hot coding / printing function;

②Automatic loading function (considering product consideration);

③ Automatic material receiving function (considering product consideration);

④ Add labeling devices;

⑤ circumferential positioning and labeling function;

⑥ Other functions (customized according to customer requirements).

技术参数/ Technical Parameters：

以下为标准机型技术参数，其他特殊要求和功能，可量身订做。

The following are the technical parameters of standard models, other special requirements and functions can be customized.
◆适用产品范围/ Applicable product range：φ25mm～φ100mm,高度/ Height≤直径/ diameter *3
◆适用标签范围Applicable label range：标签底纸宽度/ label backing paper width

15mm～100mm，长度/ length 20mm～320mm
◆贴标精度/ Labeling accuracy（mm）：±1mm
◆贴标速度/ Labeling speed（pcs/min）：40～120pcs/min（与瓶子及标签尺寸有关/ related to bottle and label size)
◆重量/ Weight（kg）：约185kg
◆频率/ Frequency（HZ）：50HZ
◆电压/ Voltage(V)：220V
◆功率/ Power（W）：980W

◆设备外形尺寸/ Outline dimensions （mm）（长×宽×高/ length × width × height）：2000×1300×1400
