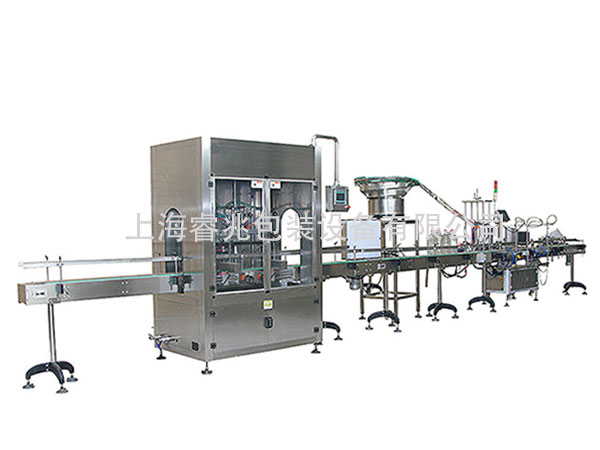

PET瓶装酱油醋灌装线适用范围：

PET瓶装酱油醋灌装线用于酱油醋、茶饮、果汁饮料等产品的热灌 装生产。该机集冲瓶、灌装、旋盖为一体，设计科学合理，操作简便，是热灌装饮品的首 选生产设备。

功能特点：

整机采用卡瓶颈悬挂运行工态设计，采用新一代不锈钢翻转式瓶夹，采用磁力扭矩式拧盖头，PET瓶装酱油醋灌装线采用灌装阀升降，能满足95度以下热灌装技术要求。整机采用人机界面触摸屏按钮、PLC电脑控制、设有缺盖、过载保护报警装置。

PET bottled soy sauce vinegar filling line：

PET bottled soy sauce vinegar filling line is used for hot filling production of soy sauce vinegar, tea, fruit juice and other products. This machine integrates flushing, filling and capping. It has a scientific and reasonable design and easy operation. It is the first production equipment for hot filling beverages.

Features:

The machine adopts the card bottleneck suspension operating mode design, uses a new generation of stainless steel flip bottle clamps, uses magnetic torque caps, and the PET bottle soy sauce vinegar filling line uses a filling valve to lift and lower, which can meet the hot filling technical requirements below 95 degrees . The whole machine adopts human-machine interface touch screen buttons, PLC computer control, and is equipped with a cover missing and overload protection alarm device.

技术参数/Technical Parameters：

适用瓶型：方形或圆形（聚酯材质  塑料螺纹盖）/ Applicable bottle type: square or round (polyester material, plastic screw cap)

圆瓶直径/ Round bottle diameter：≤93mm、方瓶/ square bottle≤90x90mm；瓶高/ bottle height 150-320mm

灌装容量/ Filling capacity：330-1500ml

灌装精度/ Filling accuracy：±1.5mm

气源压力/ Air source pressure：0.4-0.8mpa
