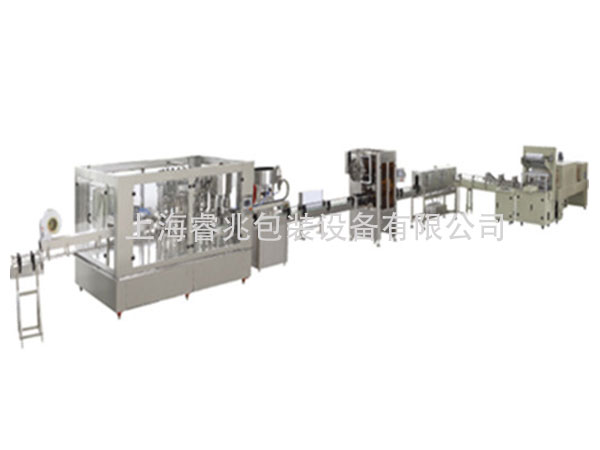

无菌PET瓶装果汁饮料灌装线

无菌PET瓶装果汁饮料灌装线

  • 所属分类:成套生产线
  • 浏览次数:
  • 发布日期:2019-12-30
  • 产品概述

适用范围:

无菌PET瓶装果汁饮料灌装线属于无菌饮料生产线系列,集洗瓶、灌装、封盖、套标、包装为一体,适用于各种果汁饮料、乳饮料的热灌装生产,同时更换少量的零部件,便可用于纯净水、矿泉水的灌装。

功能特点:

采用先进的常压重力式灌装原理,磁力扭矩式拧盖头,配有CIP自清洗接口,套标机及热收缩包装机。具有供盖系统自动控制、灌装温度自动检测、物料高温报警、低温停机并自动回流、无瓶不加盖、缺瓶等待、缺盖停机等功能,产量3000-24000瓶/小时可供用户选择。

Scope of application:

The aseptic PET bottled fruit juice filling line belongs to the aseptic beverage production line series, which integrates bottle washing, filling, capping, sleeve labeling, and packaging. It is suitable for hot filling production of various fruit juice beverages and milk beverages, and can be replaced at the same time. A small number of parts can be used for filling pure water and mineral water.

Features:

Adopting advanced atmospheric pressure filling principle, magnetic torque capping head, equipped with CIP self-cleaning interface, sleeve labeling machine and heat shrink packaging machine. It has the functions of automatic control of the cap supply system, automatic detection of the filling temperature, high-temperature alarm of the material, low-temperature shutdown and automatic reflow, no bottle without cap, no bottle waiting, no cap shutdown, etc. The output is 3000-24000 bottles / hour for user selection .

技术参数/Technical Parameters:

冲瓶头数/

Rinse head

灌装头数/

Filling heads

旋盖头数/

Number of capping heads

额定产量/

Rated output(500mml)

装机容量/

Installed capacity(KM)

外形尺寸(长*宽*高)

Dimensions (length * width * height)

8

8

3

3000BPH

3

1900*1420*2000

16

16

6

4000BPH

3.5

2200*1600*2300

18

18

6

6000BPH

4

2450*1900*2300

24

24

8

10000BPH

4.8

2750*2180*2300

32

32

10

12000BPH

7.6

4000*2300*2300

40

40

12

15000BPH

8.3

4550*2650*2300

50

50

15

20000BPH

9.6

5450*3210*2300



无菌PET瓶装果汁饮料灌装线
