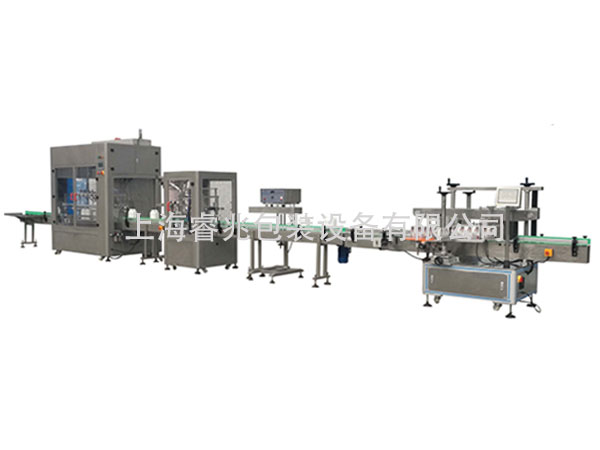

香精灌装线

香精灌装线

  • 所属分类:成套生产线
  • 浏览次数:
  • 发布日期:2019-12-30
  • 产品概述

香精灌装线适用范围:

香精灌装线适用于调料品、食品、药品、化妆品、化工等行业自动灌装旋盖作业。

功能特点:

1、本机是最 新一代回转活塞式定量灌装旋盖一体机。
2、本机旋盖部是集进瓶、理盖、上盖、旋盖、出瓶于一体。
3、准确高速地分配盖子。瓶子和盖子同步运行。
4、旋转活塞式灌装封口一体机灌装部采用先进的机电一体化技术,活塞缸进出料完全受PLC 控制。

Scope of flavor filling line:

The flavor filling line is suitable for automatic filling and capping operations in seasonings, food, pharmaceuticals, cosmetics, chemicals and other industries.

Features:

1. This machine is the latest generation of rotary piston type quantitative filling and capping machine.

2. The capping part of the machine is integrated into the bottle, cap unscrambler, cap, screw cap and bottle out.

3. Distribute the lids accurately and at high speed. The bottle and lid run simultaneously.

4. The filling section of the rotary piston filling and sealing machine adopts advanced electromechanical integration technology, and the inlet and outlet of the piston cylinder are completely controlled by PLC.

技术参数/Technical Parameters:

灌装头数/Number of filling heads:20
旋盖头数Number of capping heads:8
适用瓶径/Applicable bottle diameter:Φ40mm-Φ110mm
高度/Height:80mm-320mm
包装规格/Packaging specifications:50ml-1000ml
生产速度/Production speed:≤8000瓶/时 /≤8000 bottles / hour
计量误差/Measurement error:50-200m<±1ml , 200ml -1000ml<±2ml
电源/Power supply:AC380V
功率/Power:7KW
主机外形尺寸(长*宽*高)/Host dimensions(length * width * height):3500mm*2200mm*2200mm
需配气源/Required gas source:0.4-0.65MPa洁净稳定气源/0.4-0.65MPa clean and stable gas source
