Scope of application:

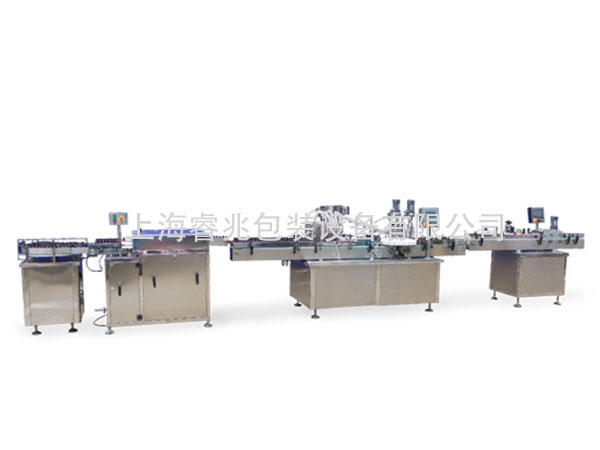

The syrup filling screwing (rolling) cap linkage line belongs to the medical production line series, suitable for the filling production of oral liquids and syrups of more than 30ML. It consists of bottle unscramble equipment, bottle washing equipment, oral syrup filling and capping integrated machine, automatic positioning vertical The bottle labeling machine is composed of equipment, which can automatically complete the processes of bottle unscramble, bottle washing, filling, capping, screwing (rolling), and labeling. It is mainly used for filling production of various liquid materials in pharmaceutical, food, and chemical industries.
It can adapt to multi-specification production, stable operation, low noise, accurate filling, low bottle breaking rate, high finished product qualification rate, and the entire production line can be controlled by single machine and chain.
技术参数/ Technical Parameters:
适用规格/ Applicable specifications：30-100ML
灌装头数/ Filling heads：低速4头，高速8头/ Low speed 4 heads, high speed 8 heads
生产能力/ Production capacity：低速30-50瓶/分，高速70-100瓶/分。30-50 bottles / min at low speed, 70-100 bottles / min at high speed
灌装精度/ Filling accuracy：≤±1%
旋盖率/ Capping rate：≥99%
电源/ power supply：220V/50Hz
生产线总长/ Total length of production line：7500*1000*1700MM
