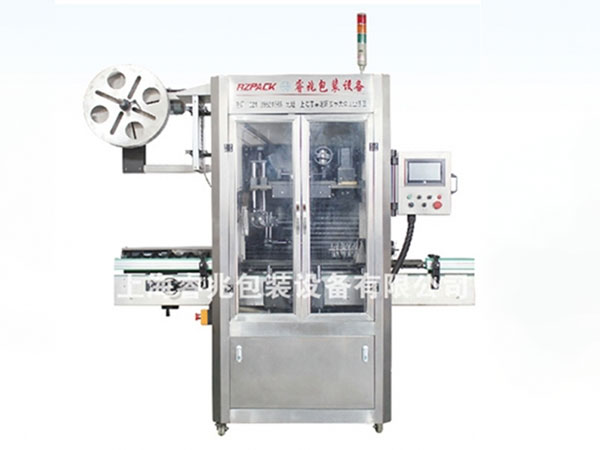

RZ-150B全自动热收缩膜套标机
RZ一15OB型套标机特点:
单收缩标签供料盘,微电脑自动控制,自动检测,自动定位,换标快速,省力,切断位置精准。
电器配置说明:
此机采用了高速机同等PLC及定位模块和伺服电机及变频器,触摸屏自动控制,操作简单。
适用瓶型:
圆瓶、方瓶、扁瓶、曲线瓶、杯型等。
RZ-150B Set Of Marking Machine Characteristics :
Single shrink labels for the tray, microcomputer automatic, control, automatic detection, automatic positioning, in therapid, saving, cut off the position precision.
Electrical configuration Instructions:
This machine adopts the high speed machine equivalent PLC and positioning module and a servo motor and frequency converter, automatic control, touch screen operation Is simple.
Applicable bottle type:
Round bottle, square and flat bottles, curve type bottle, cup, etc.
技术参数/Technical Parameters:
输入电压/lnout Voltaae:m3.380/220VAC
王产效率/irroaucuon emciency:iuu-iovssuotuei分min
主机尺寸/Most slze:2100L'1050W'2000H
适用瓶身直径/Apply the bottle diameter 026-0130
适用标签长度/Apply the label length:30MM-260MM
适用标签厚度/仰ply label thickness:0.03MM-0.13MM
适用纸管内径/Tube diameter shall apply:3'-10'
重量/welght:400KG
