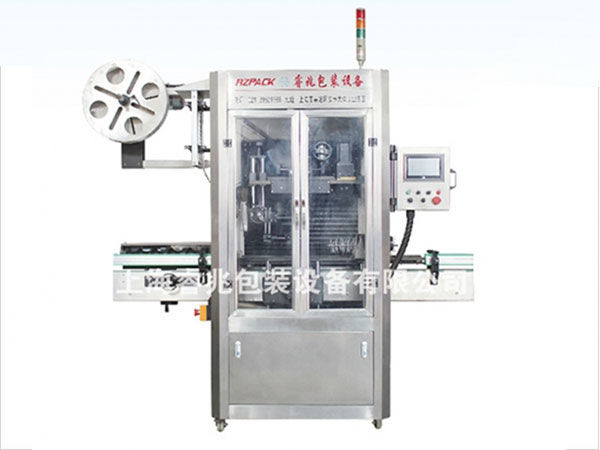

RZ-250B全自动热收缩膜套标机
RZ-250B型套标机特点:
定位式中心导柱:使标签输送更加稳定。
可调式刀盘:独创回旋切断,双面刀刃寿命长久。
毛刷组:使用不干胶条毛刷,使标签精 确到位。
同步分瓶器:使瓶子输送更加稳定,更好套标。
标签控制电眼架:独创尾翼与电眼结合,提高膜料切断精度。
人机界面控制箱:使操作更人性化。
不锈钢主机:全罩式设计、外形美观、操作安全、防水不生锈。
电器配置说明:
果用了PLC可编程控制器、进口伺服驱动器、变颇器及传感器。另外采用了定位模块使套标更精 确、快速、稳定。
适用瓶型:
各种瓶型如:圆瓶、方瓶、扁瓶、标型、曲线瓶等各种异型瓶。
RZ-250B Set Of Marking Machine:
" Positioning guide pillar type centerr make the label delivery Is more stable.
" Adjustable cutter head: original cyclotron cut-off, double blade long service life.
" A brush brush set: use stickers, label precision.
" Synchronization In bottle opener: make the bottle conveying more stable and better of label.
" Label control electric eye frame: original tail combined with electric eye, Improve the membrane material cutting precision.
" Man-machine Interface contrd bcoc make the operation more humane.
" Host:stainless steel full bell type design, beautiful appear-ance, safe In operation, waterproof does not rust.
" Electrical configuration Instructions:
Adopt PLC programmable controller, servo drive, Inverter and sensor, also adopted the positioning module of label to be more accurate, rapid and stable.
" Applicable bottle type:
All kinds of bottle type Such as: round bottle, square and flat bottles, standard type, curve and other special.
技术参数/Technical Parameters:
输入功率/Input Power:2.0KW
输入电压/lnout Voltaae:m3.380/220VAC
王产效率/irroaucuon emciency:200-250瓶Bottle/分min
主机尺寸Most slze:2100L'1050W'2000H
适用瓶身直径/Apply the bottle diameter 26-130
适用标签长度/Apply the label length:30MM-260MM
适用标签厚度/仰ply label thickness:0.03MM-0.13MM
适用纸管内径/Tube diameter shall apply:3'-10'
重量/welght:400KG
